Arch Rock
IP/6LoWPAN Software Distribution (ASD)
1.0.1 (Build
18045)
Atmel RZ
Raven
May 21st,
2008
(Please go to
http://support.archrock.com/asd
for the latest update)
1 Overview
The release contains an
evaluation copy of the Arch Rock IP/6LoWPAN software distribution (ASD) for the
Atmega1284p processor and Atmel RF230 802.15.4 radio chip. The distribution
contains a set of APIs that allows developers to create software to enable connectivity
between embedded devices and a PC over an IP mesh network when used in
conjunction with the Arch Rock 6LoWPAN Windows service.
To fully demonstrate the
power of IP based protocols, this release also contains sample applications
built with the Arch Rock 6LoWPAN kernel library for the AVRRAVEN boards; it
also contains an evaluation copy of the Arch Rock 6LoWPAN Windows Service and
an image for the AVRRZUSBSTICK.
To expedite the learning
process, a complete tutorial of the ASD is also included with this
release. The tutorial consists of a series of programming examples of
increasing complexity and HTML documentation.
Users can
use the evaluation version of the Arch Rock 6LoWPAN Windows Service and the
AVRRZUSBSTICK together with embedded applications developed with the ASD to
build fully functional 6LoWPAN applications.
This
document is organized into the following sections:
v Arch Rock IP/6LoWPAN
Software Distribution
v Arch Rock 6LoWPAN Windows
Service
v List of files and directories
Note:
Users can jump directly to section 3 and begin running the pre-built sample
applications without any setup in section 2.
Note:
Users who are interested in the tutorial documentation can look at projects\doc\doc_main.html
Note:
Arch Rock encourages you to check out support site at: http://support.archrock.com/asd
immediately for updates, bug fixes, and additional sample applications
2
Arch Rock IP/6LoWPAN Software Distribution
6LoWPAN
Kernel Library footprint:
Program
Flash memory: 36.7kB
Data
memory (System + Network): 3.8kB
Network
memory buffer: 2.4kB (tunable)
2.1 Prerequisites
The following software
packages are required:
v Get
AVR Studio 4.13 and SP2 or greater for IDE development environment.
v Get WinAVR for the
C-compiler and corresponding tool chains. The latest version as of this
release of ASD is WinAVR 4.2.2 20071221.
Depending
on your version of WinAVR, there may be bugs in its 1284p header file. If you
encounter compilation errors while building sample 1284p applications out of
the box, please try using 1284patch\iom1284p.h
2.2 Building an ASD project
The
following sections assume that the prerequisite software described in section
2.1 has been met.
2.2.1 Building an existing AVR Studio
Project
We have provided the source
code and project file for the sample application "shell". As an
example we will guide you through building the shell project.
2.2.1.1 Configuring AVR studio

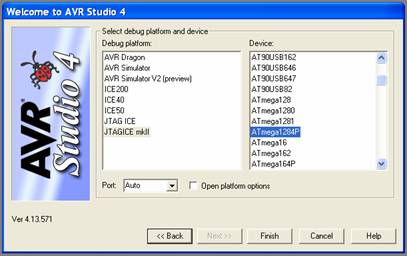

Launch AVR
studio. If prompted, select your programmer under Debug platform.
The shell project is build for the Atmega1284P; consequently we select Atmega1284P
under Device.
2.2.1.2 Open the sample project

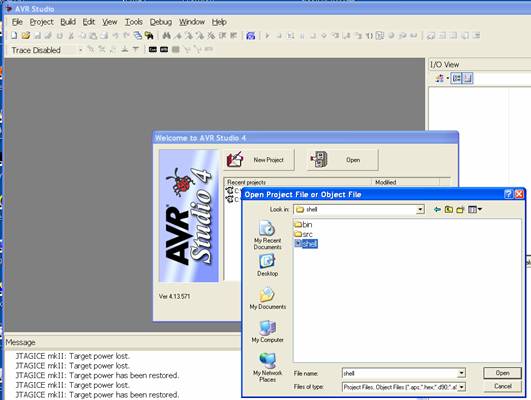

In AVR
Studio Project Wizard, or in the Project menu select open project
and browse to projects\shell, select shell.aps
and click Open
When you
try to load the shell project file in AVR studio for the first time, AVR
studio may notify you of an error in locating a particular source
file. If that is the case, simply deleted the source file in the project
browser and add it again (see example below)
Expand the Source
Files explorer to see the missing file.

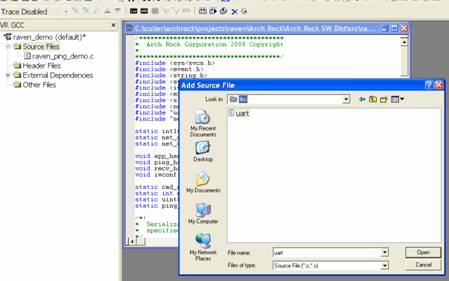

Delete the
missing source file from the project and add it again from project\libc
2.2.1.3 Project Configuration
When all
the source files are found, go to Project->Configuration Options

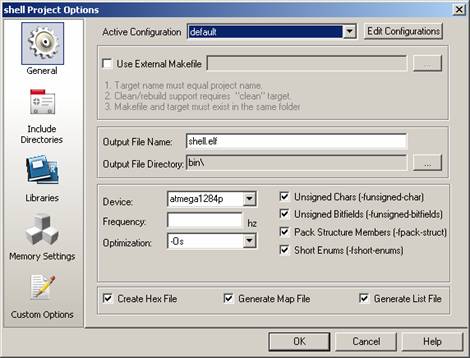

Under General
tab,
v make sure the device is specified correctly as atmega1284p
v use -Os for optimization (use -O0 for debug mode)

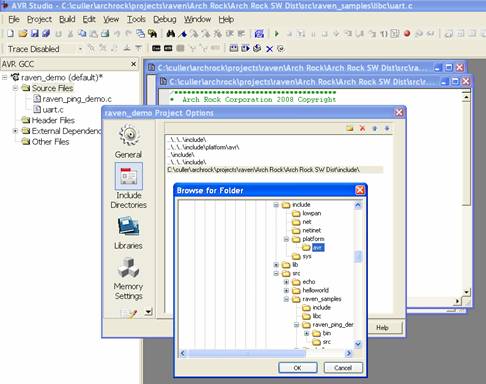

Under
Include Directories,
v add ASD's include directory
v add ASD's include\platform\avr directory
For
example, if you copy the CD to c:\, then add "c:\Arch Rock\include"
and "c:\Arch Rock\projects\include\"

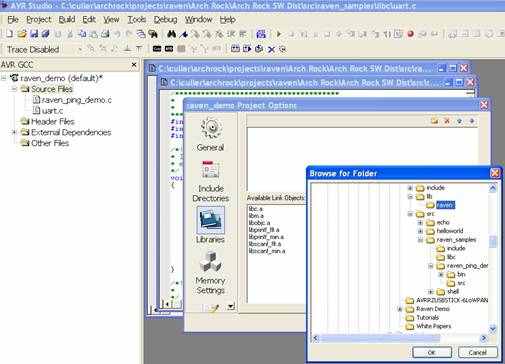

Under Libraries,
v add ASD's lib directory to library path in your ASD directory (e.g.
c:\Arch Rock\lib\raven\ and c:\Arch Rock\projects\lib\)
v select libkernel.a and libeeprom.a. Press Add
Library
Press OK.
2.2.1.4 Build
Build the
project by pressing Build -> Build or F7
The output
file is located at the Output File Directory, as specified under the General
tab in Project->Configuration Options
The output
file, shell.ihex, can be loaded onto an Atmega1284P. For details
on flashing and running the shell demo, see docs\QuickStart\QUICKSTART.htm
2.2.2 Building a new AVR project
2.2.2.1 Selecting the correct debug platform and device
2.2.2.2 Project Configuration
Go to
Project->Configuration Options
Under General
tab,
v make sure the device is specified correctly as atmega1284p
v use -Os for optimization (use -O0 for debug mode)
Under
Include Directories,
v add projects\include
v add include\
For
example, if you copy the CD to c:\, then add "c:\Arch Rock \include"
and "c:\Arch Rock\projects\include"
Under Libraries,
v add ASD's lib directory to library path in your ASD directory (e.g.
c:\Arch Rock\lib\raven and c:\Arch Rock\projects\lib)
v select libkernel.a and libpeerom.a. Press Add
Library
Press OK.
2.2.2.3 Adding files to the project

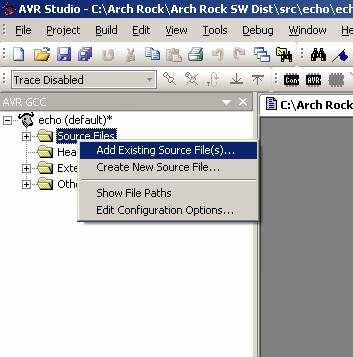

Add source
or header files by right clicking on source/header files in the project
explorer and choose the appropriate action.
2.2.2.4 Build
Build the
project by pressing Build -> Build or F7
The output
file is located at the Output File Directory, as specified under the General
tab in Project->Configuration Options
3 6LoWPAN demo binaries
We have
included sample binaries for the AVRRAVEN boards that demonstrate the
capabilities of the Arch Rock 6LoWPAN Kernel. The sample binaries are
meant to be used in conjunction with the Arch Rock 6LoWPAN Windows Service and
the AVRRZUSBSTICK (see section 4 below).
Currently
we provide one sample application:
v Shell: allows a user to telnet to an AVRRAVEN and execute
commands on a shell-like environment. (TCP/IP over 6LoWPAN)
For details
on flashing and running the sample applications, see docs\QuickStart\QUICKSTART.htm
4
Arch Rock 6LoWPAN Windows Service
An
evaluation version of the Arch Rock 6LoWPAN Windows Service is included.
It allows users to manage an Arch Rock 6LoWPAN network via a simple Web GUI. It
also allows PC applications to communicate with embedded ASD applications in
the 6LoWPAN network using standard network protocols such as TCP and UDP.
Users can
use the evaluation version of the Arch Rock 6LoWPAN Windows Service and the
AVRRZUSBSTICK together with embedded applications developed with the ASD to
build functional 6LoWPAN applications.
For a guide on how to setup
and run the Arch Rock 6LoWPAN Windows Service, go to docs\UsbStick\AVRRZUSBSTICK_SETUP_GUIDE.htm
5 Files and Directories
The
distribution contains the following files:
v License agreement
v Release notes about this distribution
v A patch for a header in WinAVR of the same name; if you encounter
compilation errors with your iom1284p.h, you should use this file
instead
v Arch Rock 6LoWPAN Windows Service installer
v Raven_telnet_shell
Ø Demo image for Atmega1284p
Ø Demo image for Atmega3290p
v UsbStick image for use in conjunction with Arch Rock 6LoWPAN Windows Service
v UDP server for listening in on a user-specified UDP port; useful for
debugging
v Whitepapers related to 6LoWPAN
v Information about Arch Rock Corporation.
·
a 1-page technical
datasheet for the Arch Rock software distribution
docs\Kernel\Reference_Manual\html\index.html
v HTML version of the ASD API documentation
docs\Kernel\Reference_Manual\refman.pdf
v PDF version of the ASD API documentation
docs\QuickStart\QUICKSTART.htm
v A walkthrough on flashing the demo binaries and getting the Arch Rock
6LoWPAN Windows Service to work
docs\UsbStick\AVRRZUSBSTICK_SETUP_GUIDE.htm
v Setup guide for the AVRRZUSBSTICK dongle and Arch Rock 6LoWPAN Windows
Service
v Arch Rock 6LoWPAN kernel library header files
v Arch Rock 6LoWPAN kernel library
v HTML documentation for the tutorials of the ASD API
v C header files common to all tutorial sample code
v Pre-built libraries common to all tutorial sample code
v Source code common to all tutorial sample code
v Source code and project file for the LCD tutorial lesson
v Source code and project file for the ping tutorial lesson
v Source code and project file for the TCP Echo server tutorial lesson
v Source code and project file for the shell tutorial lesson
6 Support
and update
Please visit http://support.archrock.com/asd for
technical support and updates.
